INTRODUCTION

A stop valve for refrigerant is widely used for various inlet and outlet pipes of condensers, pressure vessels, and evaporators and is installed in a wide range of high pressure gas using plants to control the flow of refrigerant. As the stop valve is basically manufactured in a shape that is directly welded to the piping, it perfectly prevents the risks of refrigerant leakage that is frequently observed in a flange or screw type stop valve that is connected to the piping. The vertical stem of a stop valve for refrigerant is made of stainless steel to remove the risks of refrigerant leakage caused by rust due to long term use.

Parts NO.	Description	Material
1	BODY	SF34/SPS370
2	BONNET	SF34/SM20
3	STEM	STS303
4	DISK	SM20C
5	STEM PLUG	STS303
6	SEAT WASHER	SM45C
7	HAND - WHEEL	AC4B
8	MEGASEAL RING	TEFLON-VMQ
9	SEAT PACKING	TEFLON
10	HEX. BOLT	SCM435
11	HEX. NUT	SCM435
12	“O”RING	VMQ
13	SPRING WASHER	SK5M
14	BALL	SUJ2
15	SET SCREW	SCM435
16	FLANGE GASKET	VALQUA
17	FLANGE PLAIN WASHER	SCP1

All materials of the valve satisfy the KS B 6030 requirements, and the quality of the valve has been improved by the use of materials with equivalent or higher quality. The product of 10A to 32A are made by means of high quality forge welding, which provides an outstanding durability, and the product of 40A to 350A is made of carbon steel pipes for pressure service, which facilitates the connection with the refrigerant piping in the field and easy operation. Ultra-light aluminum hand wheel is durable and easy to operate, and various packing perfectly prevents refrigerant leakage.

STOP VALVE GLOBE TYPE (10A~32A)

• Design Temperature: -80℃~+150℃
• Maximum Operating Pressure: 3MPa
• Design Pressure: 3MPa
• Test Pressures: 4.5MPa
• Body Materials: Forged steel
• Stem: Stainless steel
• Hand Wheel: Ultra-light aluminum alloy
• Suitable for ammonia, Freon, and new refrigerant
• Directly welded to the piping

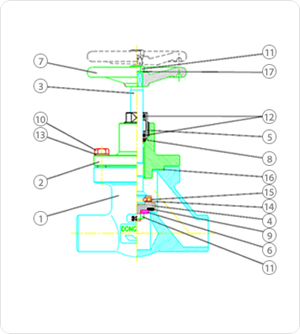

DRAWING

SPECIFICATIONS

Size		L	H	C	D	d￠	Weight (kg)
A(mm)	B(inch)	L	H	C	D	d￠	Weight (kg)
10	3/8	85	139.5	8	60	12	1
15	1/2	115	152	25	88	16	2.8
20	3/4	115	152	25	88	20	2.6
25	1	160	185	27	100	27	4.5
32	1¼	169	212.5	29.5	127	35	6.9

* The above specifications may be changed without prior notice for product development and quality improvement purposes.

STOP VALVE GLOBE TYPE (40A~350A)

• Body Materials: SPPS380
• Stem: Stainless steel
• Hand Wheel: Ultra-light aluminum alloy
• Suitable for ammonia, Freon, and new refrigerant
• Directly welded to the piping

DRAWING

SPECIFICATIONS

Size		L	H	C	D￠	d￠	Weight (kg)
A(mm)	B(inch)	L	H	C	D￠	d￠	Weight (kg)
40	1½	190	228.5	70	127	41.2	7
50	2	210	217	80	127	52.7	10
65	2½	240	294.5	95	156	65.9	16
80	3	300	304.5	96	156	78.1	22
100	4	250	354	108	195	102.3	29
125	5	400	384	136	195	126.6	38
150	6	460	467	170	250	151	69.8
200	8	540	536.5	230	250	199.9	76.8
250	10	640	622	274	250	248.8	118.5
300	12	720	670	320	250	297.9	143
350	14	800	668.4	347	250	333.4	145

* The above specifications may be changed without prior notice for product development and quality improvement purposes.
