INTRODUCTION

A manual expansion valve is a device that controls the quantity of high temperature and high pressure refrigerant sent from the refrigeration and air conditioning system to the evaporator, which uses an ammonia refrigerant through handle operation. Since it is butt welded, it perfectly prevents the risks of refrigerant leakage compared to the flange or screw connection type.

EXPANSION VALVE FORGED TYPE (10A~32A)

• Controls the flow of fluid sent to the evaporator
• Valve housing made of forged steel
• Design Temperature: -80℃~+150℃
• Maximum Operating Pressure: 3MPa
• Design Pressure: 3MPa
• Test Pressures: 4.5MPa
• Suitable for ammonia, Freon, and new refrigerant
• Directly welded to the piping

EXPANSION VALVE STEEL PIPE TYPE (40A~80A)

• Controls the flow of fluid sent to the evaporator
• Valve housing made of forged steel
• Design Temperature: -80℃~+150℃
• Maximum Operating Pressure: 3MPa
• Design Pressure: 3MPa
• Test Pressures: 4.5MPa
•Hand Wheel: Ultra-light aluminum alloy
• Suitable for ammonia, Freon, and new refrigerant
• Directly welded to the piping

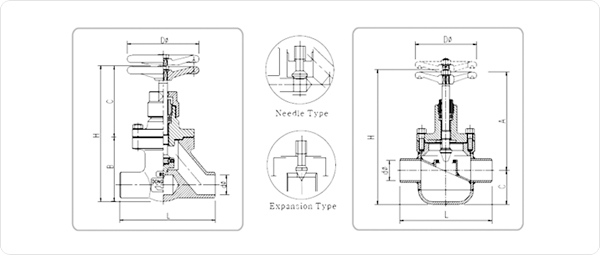

EXPANSION (NEEDLE) VALVE (10A~32A) / EXPANSION (NEEDLE) VALVE (40A~80A)

SPECIFICATIONS

Size		L	B	C	d￠	D￠	H	Weight (kg)	Size		L	B	C	d￠	D￠	H	Weight (kg)
A(mm)	B(inch)	L	B	C	d￠	D￠	H	Weight (kg)	A(mm)	B(inch)	L	B	C	d￠	D￠	H	Weight (kg)
10	3/8	85	47	91	12.7	60	138	1	40	1½	190	218	70	41.2	127	288	7.2
15	1/2	115	74.5	106	16.1	88	180.5	1.5	50	2	210	222	80	52.7	127	302	8
20	3/4	115	94.5	105	21.4	88	200.5	2.5	65	2½	267	238	95	65.9	156	333	16
25	1	160	95	105	27.2	100	203	4.3	80	3	277	300	96	78.1	156	396	22
32	1¼	169	114	127	35.5	127	241	6.1

* The above specifications may be changed without prior notice for product development and quality improvement purposes.
