INTRODUCTION

All CAP series unit cooler models are manufactured under strict quality and environmental management systems (ISO 9001 and ISO 14001) to meet customers’ requirements. The CAP series unit cooler is a high efficiency product made of an aluminum fin and copper tube, which is suitable for a Freon-based new refrigerant.
The CAP series products are classified as a ceiling type or floor installation type, depending on the field conditions and installation method. The floor installation type products are divided into front discharge, upper discharge, and intake discharge models depending on the field conditions. Classified into chilling, refrigeration, freezing, and quick freezing types, the CAP series is the best choice for meeting your requirements.

CAP SERIES UNIT COOLER

• Suitable for most of refrigeration/freezing storage facilities
• Various defrost methods are available: water, electric heater, hot gas
• Provides high efficiency and outstanding performance
• Adopts the optimal design and production method depending on the customer's order
• Various industrial sectors including cold storage, food processing and low temperature freezing, workplaces, etc.
• Environmental management system and EU certified product (ISO 9001, ISO 14001, CE)

CAP SERIES MODEL (ALP-C/F/U/S 00)

• CAP-F (Front blow type)
• CAP-U (Upper blow type)
• CAP-S (Suction blow type)
• 00: Effective coil length

ALUMINUM UNIT COOLER ALP-U/S SERIES

- UNIT COOLER CAP-F TYPE

• Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
• Can be applied to a wide range of equipment from refrigeration/cold storage to small or large sized equipment
• Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
• Various pin pitches can be applied depending on the temperature inside the refrigerator (6/8/10/12/13/14mm)
• Power: 3ph, 220V/380V, 50Hz/60Hz
• Evaporative Coil: Copper tube 15.88mm
• Wind Direction and Installation Method: front discharge and ceiling installation
• Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed aluminum motor

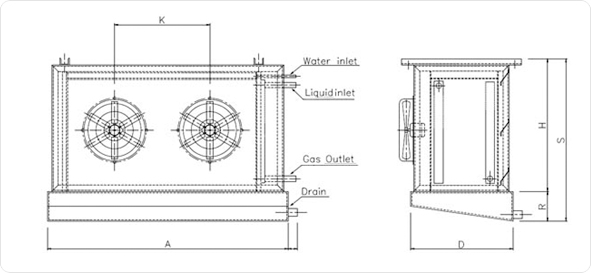

DRAWING

SPECIFICATIONS

Model		A	B	S	R	H	K
CAP	13 F	2200	950	1200	350	850	900
	15 F	2200	1050	1300		950	900
	18 F	2580	1050	1300		950	1090
	20 F	2580	1150	1400		1050	1090
	22 F	2580	1250	1500		1150	1090
	25 F	2820	1250	1500		1150	1210
	29 F	2820	1450	1700		1350	1210
	32 F	3060	1450	1700		1350	2*900=1800
	38 F	3060	1650	1900		1550	2*900=1800
	43 F	3060	1850	2100		1750	2*870=1740

* The above specifications may be changed without prior notice for product development and quality improvement purposes.

COOPER UNIT COOLER CAP-U SERIES

- UNIT COOLER CAP-U/S TYPE

• Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
• Can be applied to a wide range of equipment from refrigeration/cold storage to small or large sized equipment
• Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
• Various pin pitches can be applied depending on the temperature inside the refrigerator (6/8/10/12/13/14mm)
• Power: 3ph, 220V/380V, 50Hz/60Hz
• Evaporative Coil: Copper tube 15.88mm
• Wind direction and installation method
> U – upper discharge, floor installation
> S – front intake discharge, floor installation
• Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor

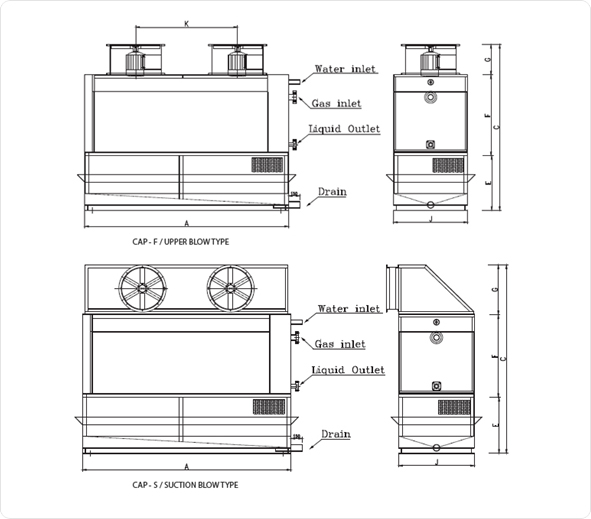

DRAWING

SPECIFICATIONS

- CAP-U (Upper Blower Type)

Model		A	C	E	F	G	J	K
CAP	13 U	2200	2095	600	350	320	810	900
	15 U	2200	2095			320	910	900
	18 U	2580	2145			370	910	1090
	20 U	2580	2145			370	1010	1090
	22 U	2580	2185			410	1110	1090
	25 U	2820	2185			410	1110	1210
	29 U	2820	2185			410	1310	1210
	32 U	3060	2185			410	1310	2*900=1800
	38 U	3060	2185			410	1510	2*900=1800
	43 U	3060	2275			500	1710	2*870=1740

- CAP-U (Front Suction Type)

Model		A	P	G	F	N	J	K
CAP	13 S	2200	2365	600	1135	595	810	900
	15 S	2200	2365			595	910	900
	18 S	2580	2430			655	910	1090
	20 S	2580	2430			655	1010	1090
	22 S	2580	2480			700	1110	1090
	25 S	2820	2480			700	1110	1210
	29 S	2820	2480			700	1310	1210
	32 S	3060	2480			700	1310	2*900=1800
	38 S	3060	2480			700	1510	2*900=1800
	43 S	3060	2545			760	1710	2*870=1740

* The above specifications may be changed without prior notice for product development and quality improvement purposes.
