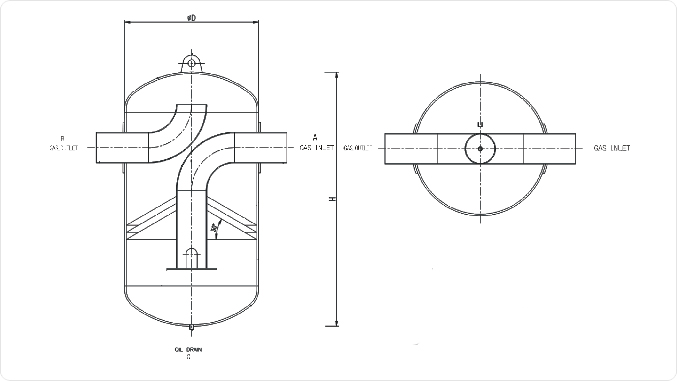

OIL SEPARATOR (Vertical Type)

OIL SEPARATOR (Vertical Type)

SPECIFICATIONS

Model D(￠) H(㎜) Liquid Drain(A) (mm) shell Material Head
In(A) In(B)
DYOS01 216.3 570 32 32 15 8SPPS370#40 9.0 SM490B
DYOS02 267.4 730 40 40 15 SPPS370#40 9.0
DYOS03 318.5 700 50 50 15 SPPS370#40 9.0
DYOS04 355.6 1000 65 65 15 SPPS370#40 9.0
DYOS05 406.4 1150 80 80 15 SPPS370#40 9.0
DYOS06 457.2 1350 90 90 15 SPPS370#40 9.0/12.0
DYOS07 508.0 1400 90 90 15 SPPS370#40 9.0/12.0
DYOS08 555.8 1400 100 100 15 SPPS370#40 9.0/12.0
DYOS09 609.6 1470 100 100 15 SPPS370#40 9.0/12.0
DYOS10 660.4 1590 125 125 15 SPPS370#40 9.0/12.0
DYOS11 711.2 1600 125 125 15 9.0 9.0/12.0
DYOS12 762.0 1650 125 125 15 9.0 9.0/12.0
DYOS13 812.8 1670 150 150 15 12.0 12.0
DYOS14 914.4 1730 150 150 15 12.0 12.0
DYOS15 950.0 1800 150 150 15 12.0 12.0
DYOS16 1016.0 2080 150 150 15 12.0 12.0

* The above specifications may be changed without prior notice for product development and quality improvement purposes.
