INTRODUCTION

The ALP series aluminum unit cooler is EM certified by the Korean Agency for Technology and Standards under the Ministry of Commerce Industry and Energy in recognition of the excellence of its materials, quality, and equipment performance. All unit cooler models are manufactured under strict quality and environmental management systems (ISO 9001 and ISO 14001) to meet customers’ requirements. The ALP series is a product manufactured using aluminum pins and tubes, producing stable and excellent heat exchanging efficiency for an ammonia refrigerant. As an alternative for toxic Freon gas, the high efficiency aluminum unit cooler is an eco-friendly high efficiency product suitable for new refrigerant and ammonia.

ALP SERIES UNIT COOLER

  • • Suitable for most of refrigeration/freezing storage facilities
  • • Various defrost methods are available: water, electric heater, hot gas
  • • Provides high efficiency and outstanding performance
  • • Adopts the optimal design and production method depending on the customer's order
  • • Various industrial sectors including cold storage, food processing and low temperature freezing, workplaces, etc.
  • • EM certified through strict experiments and verification by the Korean Agency for Technology and Standards
    (KATS) and acquired international quality and environmental management systems and European Community
    certification (ISO 9001, ISO 14001, CE)

ALP SERIES MODEL (ALP-C/F/U/S 00)

  • • ALP-C (Celling type)
  • • ALP-F (Front blow type)
  • • ALP-U (Upper blow type)
  • • ALP-S (Suction blow type)
  • • 00: Effective coil length

Installation Type

The ALP series products are classified as a ceiling type or floor installation type, depending on the field conditions and installation method. The floor installation type products are divided into front discharge, upper discharge, and intake discharge models depending on the field conditions. Classified into chilling, refrigeration, freezing, and quick freezing types, the ALP series is the best choice for meeting your requirements.

  • ALP-C / Ceiling Mounted Type

    [ALP-C / Ceiling Mounted Type]

  • ALP-U / Floor Mounted Type

    [ALP-U / Floor Mounted Type]

  • ALP-F / Floor Mounted Type

    [ALP-F / Floor Mounted Type]

  • ALP - DPF / Floor Mounted Type

    [ALP - DPF / Floor Mounted Type]

ALUMINUM UNIT COOLER ALP-C SERIES

- UNIT COOLER ALP-C TYPE

  • • Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
  • • Can be applied to a wide range of equipment from refrigeration/cold storage to small or large sized equipment
  • • Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
  • • Various pin pitches can be applied, depending on the temperature inside the refrigerator (6/8/10/12/14mm)
  • • Power: 3ph, 220V/380V, 50Hz/60Hz
  • • Evaporative Coil: Aluminum tube 22 x 1.8mm
  • • Wind Direction and Installation Method: front discharge and ceiling installation
  • • Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor
ALUMINUM UNIT COOLER ALP-C SERIES

DRAWING

DRAWING

SPECIFICATIONS

Model Evaporator (Coil Section) Fan & Motor Connection(A) External Size (㎜)
R x S Transfer Area(㎡) Effect
Length		 DIA￠ kw Air
Volume
(CMM)		 In/
Out		 Water
Volume
(ℓ/min)		 Water
Inlet		 Drain Length
(A)		 Width
(D)		 Height
(S)
8㎜ 10㎜ 12㎜
ALP C 15 8 x 10 123.6 99.6 84 1500
(㎜)		 400 0.4
x(2)		 120 15
25		 100 25 40 1700 1000 1100
10 x 10 154.5 124.5 105
ALP C 20 8 x 10 164.8 132.8 112 2000
(㎜)		 550 0.75
x(2)		 220 15
40		 190 32 50 2200 1000 1100
10 x 10 206 166 140
ALP C 25 10 x 10 257.5 207.5 175 2500
(㎜)		 550 1.5
x(2)		 350 15(2)
50(2)		 280 50 80 2700 1210 1400
10 x 12 309 249 210
ALP C 30 10 x 12 370.8 298.8 252 3000
(㎜)		 600 2.4
x(3)		 630 20(2)
65(2)		 400 65 100 3200 1450 1400
12 x 12 445 358.6 302.4

* The above specifications may be changed without prior notice for product development and quality improvement purposes.

ALUMINUM UNIT COOLER ALP-F SERIES

- UNIT COOLER ALP-F TYPE

  • • Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
  • • Can be applied to a wide range of equipment from refrigeration/cold storage to small or large sized equipment
  • • Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
  • • Various pin pitches can be applied, depending on the temperature inside the refrigerator (6/8/10/12/14mm)
  • • Power: 3ph, 220V/380V, 50Hz/60Hz
  • • Evaporative Coil: Aluminum tube 22 x 1.8mm
  • • Wind Direction and Installation Method: front discharge and ceiling installation
  • • Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor

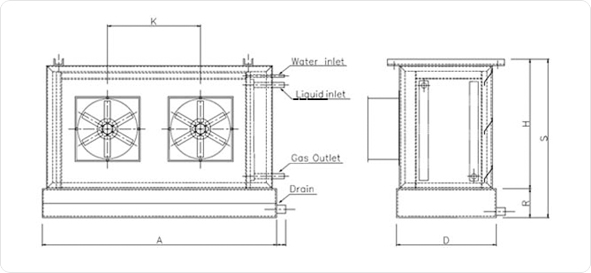

ALUMINUM UNIT COOLER ALP-C SERIES

DRAWING

DRAWING

SPECIFICATIONS

Model Evaporator (Coil Section) Fan & Motor Connection(A) External Size (㎜)
R x S Transfer Area(㎡) Effect
Length		 DIA￠ kw Air
Volume
(CMM)		 In/
Out		 Water
Volume
(ℓ/min)		 Water
Inlet		 Drain Length
(A)		 Width
(D)		 Height
(S)
8㎜ 10㎜ 12㎜
ALP F 15 12 x 10 185.4 149.4 126 1500
(㎜)		 500 0.75
x(2)		 220 15
32		 100 40 65 1700 1000 1350
12 x 12 222.5 179.3 151.2
ALP F 17 12 x 12 252.1 203.2 171.4 1700
(㎜)		 550 1.5
x(2)		 340 20
50		 220 40 65 1900 1000 1350
14 x 14 343.2 276.6 233.2
ALP F 19 14 x 14 383.6 309.1 260.7 1900
(㎜)		 600 2.2
x(2)		 440 25
50		 340 50 80 2100 1135 1485
16 x 14 438.4 353.2 297.9
ALP F 21 16 x 14 484.5 390.4 329.3 2100
(㎜)		 600 2.2
x(3)		 630 25(2)
50(2)		 400 65 100 2300 1250 1600
16 x 16 553.7 446.2 376.3
ALP F 23 16 x 14 530.7 427.6 360.3 2300
(㎜)		 600 2.2
x(3)		 660 25(2)
50(2)		 490 65 100 2500 1250 1600
16 x 16 606.5 488.7 412.2
ALP F 26 16 x 16 685.6 552.4 465.9 2600
(㎜)		 650 3.7
x(3)		 780 25(2)
65(2)		 560 80 125 2800 1250 1600
16 x 18 771.3 621.5 524.2

* The above specifications may be changed without prior notice for product development and quality improvement purposes.

ALUMINUM UNIT COOLER ALP-U/S SERIES

- UNIT COOLER ALP-U/S TYPE

  • • Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
  • • Can be applied to a wide range of equipment from refrigeration/cold storage to small or large sized equipment
  • • Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
  • • Various pin pitches can be applied depending on the temperature inside the refrigerator (6/8/10/12/13/14mm)
  • • Power: 3ph, 220V/380V, 50Hz/60Hz
  • • Evaporative Coil: Aluminum tube 22*1.8mm
  • • Wind direction and installation method
    > ALP U – upper discharge, floor installation
    > ALP S – front intake discharge, floor installation
  • • Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor

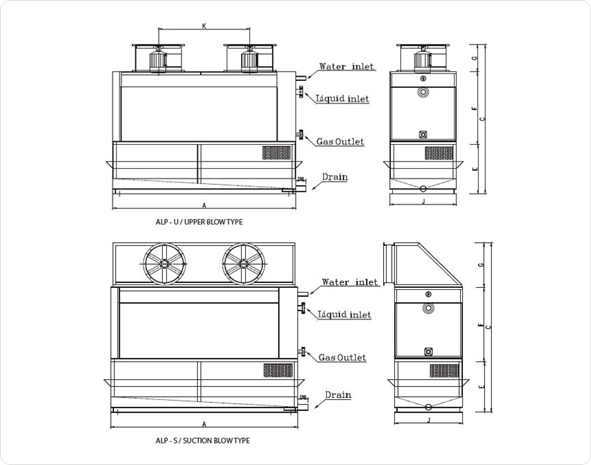

ALUMINUM UNIT COOLER ALP-U/S SERIES

DRAWING

DRAWING

SPECIFICATIONS

Model Evaporator (Coil Section) Fan & Motor Connection(A) External Size (㎜)
R x S Transfer Area(㎡) Effect
Length		 DIA￠ kw Air
Volume
(CMM)		 In/
Out		 Water
Volume
(ℓ/min)		 Water
Inlet		 Drain Length
(A)		 Width
(J)		 Height
(C)
8㎜ 10㎜ 12㎜
ALP U/S 15 12 x 10 185.4 149.4 126 1500
(㎜)		 500 0.75
x(2)		 220 15
32		 100 40 65 1900 1000 U 1970
12 x 12 222.5 179.3 151.2 S 2150
ALP U/S 17 12 x 12 252.1 203.2 171.4 1700
(㎜)		 550 1.5
x(2)		 340 20
50		 220 40 65 2100 1000 U 1970
14 x 14 343.2 276.6 233.2 S 2430
ALP U/S 19 14 x 14 383.6 309.1 260.7 1900
(㎜)		 600 2.2
x(2)		 440 25
50		 340 50 80 2300 1135 U 2450
16 x 14 438.4 353.2 297.9 S 2480
ALP U/S 21 16 x 14 484.5 390.4 329.3 2100
(㎜)		 600 2.2
x(3)		 630 25(2)
50(2)		 400 65 100 2500 1250 U 2590
16 x 16 553.7 446.2 376.3 S 2670
ALP U/S 23 16 x 14 530.7 427.6 360.3 2300
(㎜)		 600 2.2
x(3)		 660 25(2)
50(2)		 490 65 100 2700 1250 U 2590
16 x 16 606.5 488.7 412.2 S 2670
ALP U/S 26 16 x 16 685.6 552.4 465.9 2600
(㎜)		 650 3.7
x(3)		 780 25(2)
65(2)		 560 80 125 3000 1250 U 2590
16 x 18 771.3 621.5 524.2 S 2860

* The above specifications may be changed without prior notice for product development and quality improvement purposes.

Due to DEC’s design-to order approach, the range of unit cooler virtually unlimited. The choice of materials is defined by customer’s specified mode of application: aluminum, copper, stainless steel or fully hot-dipped galvanized steel. In accordance with latest innovation both the tubes and fins can be made completely of stainless steel.

The M-type unit cooler custom manufactured for a tunnel freezer is a high efficiency product using an aluminum plate fin and tube, and those fins and tubes can be made of stainless steel when requested by the customer. The new stainless steel unit cooler product can be applied to a wide range of industries such as the refrigeration and freezing industry, and food industry, as well as chemical plants and the semiconductor manufacturing process.

- UNIT COOLER - ALP M TYPE

  • • Implements high efficiency thermal conductivity thanks to the adoption of an aluminum plate fin and tube
  • • High efficiency product for tunnel freezers
  • • Various pin pitches can be applied depending on the temperature inside the refrigerator (10/12/14/20mm)
  • • Power: 3Ph, 220V/380V, 50Hz / 60Hz
  • • Evaporative Coil: Aluminum tube Φ22* 1.8t
  • • Wind Direction and Installation Method: DOWN BLOW
  • • Fan and Motor: integrated type high efficiency fan & motor
UNIT COOLER - ALP M TYPE

- UNIT COOLER - SSP TYPE

  • • Adopts a coil consisting of a stainless steel plate fin and tube
  • • Various applications including refrigeration and freezing equipment, chemical plants, and the semiconductor industry
  • • Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
  • • Various pin pitches can be applied depending on the temperature inside the refrigerator (6/8/10/12/13/14/20mm)
  • • Power: 3Ph, 220V/380V, 50Hz / 60Hz
  • • Evaporative Coil: Stainless steel tube Φ21.7 x 0.8t
  • • Wind Direction and Installation Method: Custom made
  • • Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor
UNIT COOLER - SSP TYPE

- UNIT COOLER - SST TYPE

  • • Adopts a coil consisting of a stainless steel plate fin and tube
  • • Various applications including refrigeration and freezing equipment, chemical plants, and the semiconductor industry
  • • Electric heater defrost method equipped with an overheating protection T/C ensures safe operation
  • • Various pin pitches can be applied depending on the temperature inside the refrigerator (6/8/10/12/13/14/20mm)
  • • Power: 3Ph, 220V/380V, 50Hz / 60Hz
  • • Evaporative Coil: Stainless steel tube Φ21.7 x 0.8t
  • • Wind Direction and Installation Method: Custom made
  • • Fan and Motor: Aluminum axial fan or Amass fan, totally enclosed motor
UNIT COOLER - SST TYPE
