INTRODUCTION

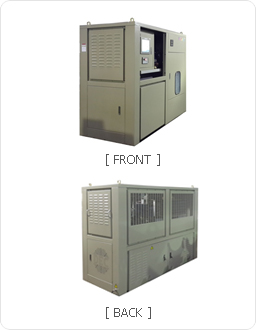

The RRM system unit is an integrated package and consists of a refrigerant compressor, dedicated high efficiency oil separator, liquid receiver, condenser, filter dryer, control valves, and high pressure hose for refrigerant. All control devices and safety devices are installed as system units.
The compactness and light weight of the system unit enhances its mobility, facilitating its relocation in the industrial field, and the adoption of PLC touch screen enables fully automatic operation, maximizing user convenience.
Specialized models for various applications are available, providing the advantage of custom configurations optimized for customer requirements such as refrigerant recovery and recharging, refrigerant recovery and refinement, or integrated configuration.
The refrigerant recovery and refining device is designed to collect and reuse refrigerant after refinement.
It is classified as a low pressure refrigerant refining device or high pressure refrigerant refining device, depending on the characteristics of refrigerant, and a wide range of models for various applications are available.

TABLE 1 RRM L-SPECIFICATIONSS

RRM series is used for the recovery and recharging of mid to high pressure refrigerant and is applied to CFC-12, CFC-500, CFC-502, HFC-134a, and HCFC-22.

Refrigerant Capacity at 80% Full(kg)

Model/Specifications		RRM-200	RRM-300	RRM-500	RRM-1000	RRM-1500	RRM-2000	RRM-2500	RRM-3000
Recoverable refrigerant		R12 R22 R134a	R12 R22 R134a	R12 R22 R134a	R12 R22 R134a	R12 R22 R134a	R12 R22 R134a	R12 R22 R134a	R12 R22 R134a
Recovery quantity (kg)	R12 R22 R134a	222 202 205	333 302 307	561 510 518	1,105 1,004 1,020	1,881 1,509 1,533	2,209 2,007 2,039	2,755 2,503 2,543	3,307 3,004 3,052
Standard voltage (V/Ph/Hz)		220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)
Size (mm)	Height Width Length	1,517 757 1,492	1,619 859 1,492	1,670 910 2,068	1,828 1,180 2,890	2,100 1,180 2,890	2,200 1,280 3,090	2,454 1,324 3,536	2,554 1,424 3,528
Safety valve		15A	20A	20A	20A	25A	25A	25A	25A

* All RRM series models feature castors equipped with a lock.

* The above sizes include the castors and electric control unit. For panel (casing) models, please contact us.

* These products may be changed without prior notice for product development and improvement purposes.

TABLE 2 RRM L-SPECIFICATIONSS

The L series of the RRM model are used for the recovery and recharging of low pressure refrigerant and is applied to CFC-11, HCFC-123, and CFC-114.

Refrigerant Capacity at 80% Full(kg)

Model/Specifications		RRM-200L	RRM-300L	RRM-500L	RRM-1000L	RRM-1500L	RRM-2000L	RRM-2500L	RRM-3000L
Recoverable refrigerant		R11 R123	R11 R123	R11 R123	R11 R123	R11 R123	R11 R123	R11 R123	R11 R123
Recovery quantity (kg)	R12 R22 R134a	206	306	512	1,029	1,51	2,010	2,516	3,018
Standard voltage (V/Ph/Hz)		220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)	220/3/60(50) 380/3/60950)
Size (mm)	Height Width Length	1,490 730 1,357	1,560 800 1,492	1,640 880 1,492	1,790 1,030 2,307	2,070 1,150 2,497	2,140 1,220 2,822	2,390 1,220 2,822	2,460 1,330 3,357
Safety valve		15A	20A	20A	20A	25A	25A	25A	25A

* All RRM series models feature castors equipped with a lock.

* The above sizes include the castors and electric control unit. For panel (casing) models, please contact us.

* These products may be changed without prior notice for product development and improvement purposes.
