Plate ice machine

home > Product > Plate ice machine

INTRODUCTION

The DH series plate type ice machine uses a high efficiency vertical plate type double-side evaporator made of aluminum alloy. The plate type ice machine can control the thickness of ice, depending on the intended use. It has also improved productivity by minimizing the time taken to produce and remove ice through the adoption of a rapid hot gas defrost method.
The HD series plate type ice machine produces ice with a thickness of 5 to 25mm to be used for various applications including the storage of fishery and poultry products and energy storage systems such as an ice thermal storage system. Our plate type ice machine is appropriate for applications in the food industry or refrigeration plants requiring hygienic facilities.

Characteristics of plate type ice machine

• Produces ice with various thicknesses depending on the intended use
• Rapid ice production through the use of a hot gas removal system
• Double-side vertical shape aluminum alloy evaporator for high efficiency and productivity
• Ice making water spray system is easy to maintain and does not cause clogging
• Touch screen type easy operation and hygienic ice production
• Rigid frame structure and beautiful polyurethane casing panel

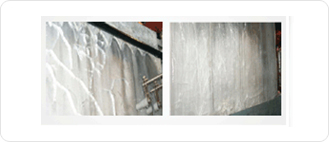

[ Plate ice available 5~25mm thickness ]

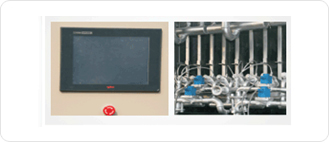

[ Touch screen & Vertical plate evaporator ]

SPECIFICATIONS

Classification ＼ Model		DH-13N	DH-13N	DH-13N	DH-13N	DH-13N
Capacity (ton/day)		10~13	13~16	17~22	22~27	26~33
Refrigerator	Power (kw)	30	45	60	75	90
Refrigerator	RT	19.74	29.60	39.40	49.83	58.44
Condenser motor (kW)		0.75x3	0.75x5	0.75x6	0.75x6	0.75x6
Refrigerant liquid pump (kW)		0.75	1.5	1.5	1.5	2.2

* Standard operating conditions

– Ice thickness: 5~25mm
– Temperature of Ice Making Water: +15℃
– Evaporation temperature : -15 ~ -20℃
– Condensing temperature : +35℃
– Atmosphere temperature : +32.2℃

[ Ice storage room ]
